Ribbed Textured Acrylic Sheet Decoration Polycarbonate Sheets Extruded Transparent Diamond Sheet
Our Decorative Extruded Clear Striped Texture Reeded Acrylic Sheet is a premium transparent plastic panel designed with elegant vertical grooves, also known as a fluted or ribbed surface. Manufactured with 100% virgin PMMA material, this acrylic sheet offers excellent clarity, durability, and a stylish striped finish that enhances both functional and decorative applications.

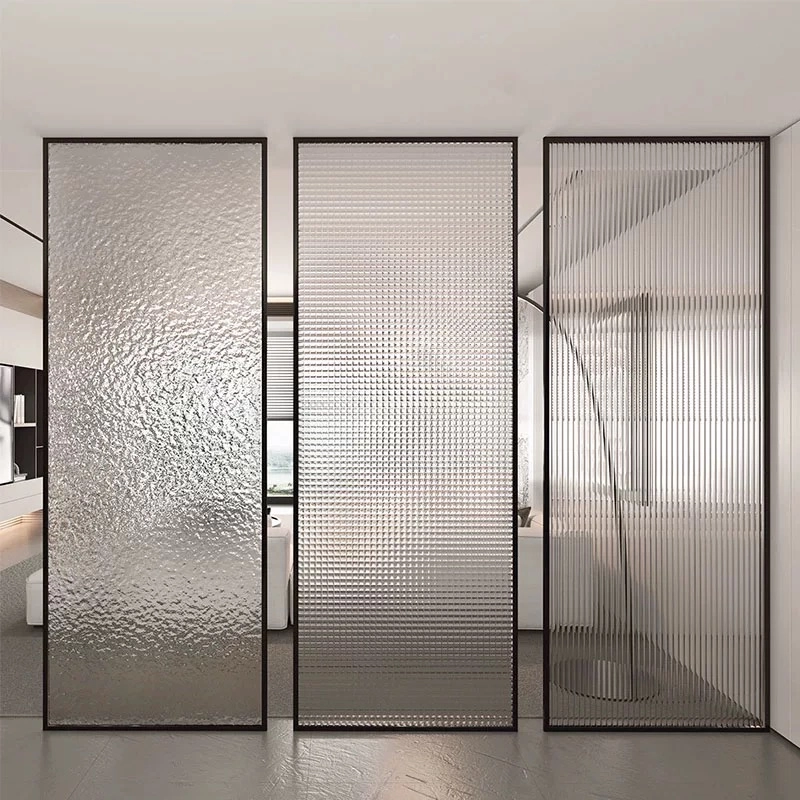

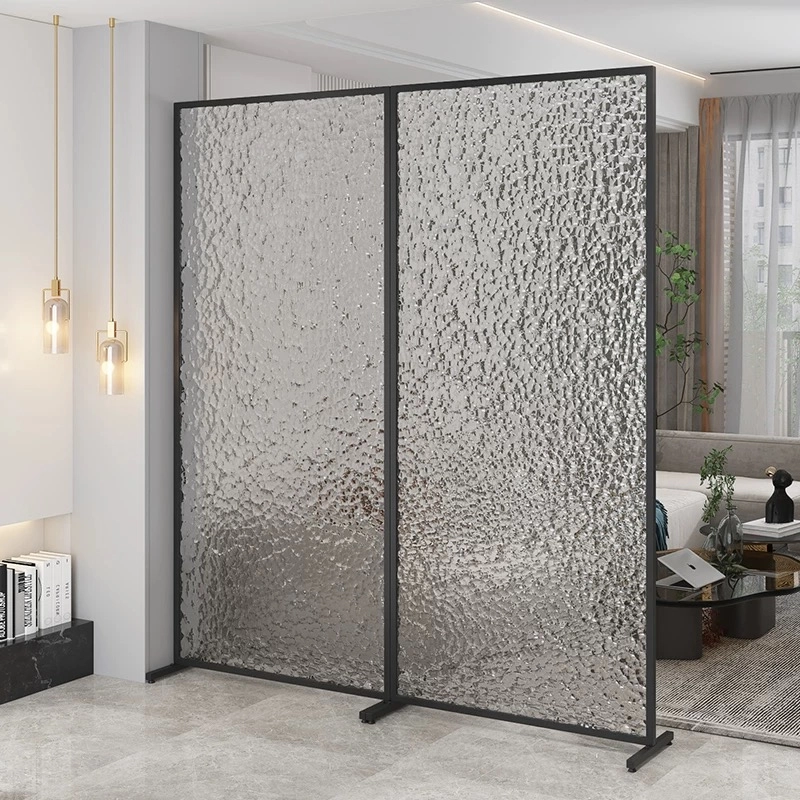

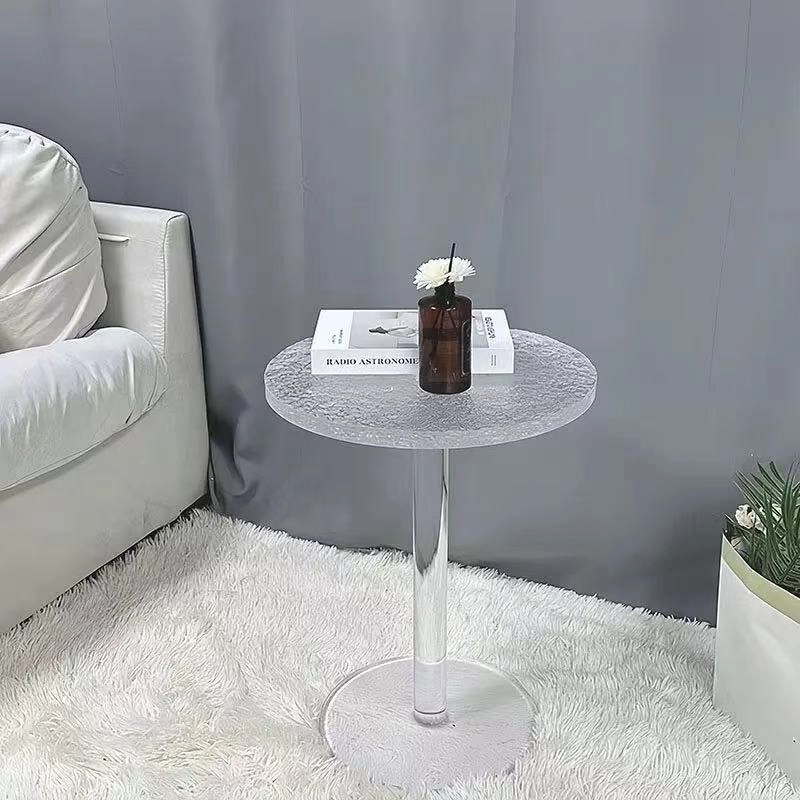

Compared with traditional glass, reeded acrylic sheets are lighter, stronger, and easier to cut or thermoform, making them a versatile choice for interior design, partitions, furniture, and retail displays. The unique striped texture allows for privacy while still transmitting light, making it ideal for modern spaces that require both openness and separation.
Parameters
| Standard Colors | Texture Type | Texture Depth | Texture Direction |

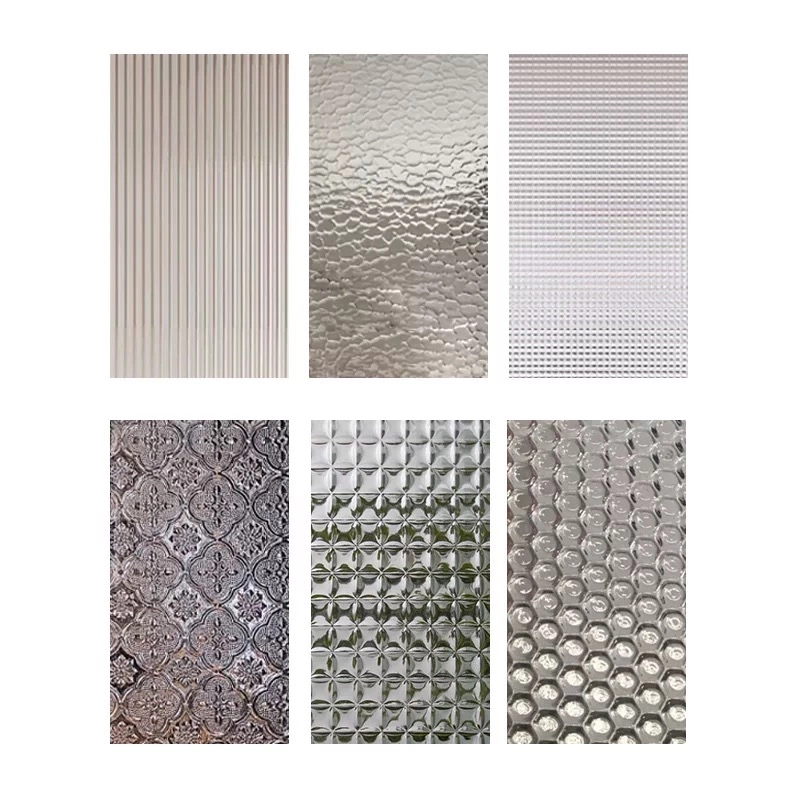

| Clear, Frosted, Opal, Black, Custom RAL/Pantone | Fluted (Linear), Wave, Diamond, Prismatic | 0.5mm - 3.0mm | Vertical, Horizontal, Bidirectional |
| Thickness Options | Standard Sheet Sizes | Maximum Sheet Size | Flute Pitch |
| 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm | 1220x2440mm (4'x8'), 1220x1830mm | 3000x2000mm | 10mm, 15mm, 20mm, 25mm |
| Haze Value | Gloss Level | Surface Hardness | Tensile Strength |
| 20%-70% | 30-90 GU (at 60°) | 2H-3H (Pencil) | 65-75 MPa |
| Flexural Strength | Modulus of Elasticity | Heat Deflection Temp | Service Temperature |
| 100-120 MPa | 2800-3200 MPa | 85-95°C @1.82MPa | -40°C to +90°C |
| Thermal Expansion | CNC Cutting | Laser Cutting | Thermoforming |
| 7x10⁻⁵/°C | Yes (Best with diamond tools) | Yes (CO₂ laser) | 120-150°C |
| Adhesive Bonding | Printing Compatibility | ||
| Weld-On #3, #4 | UV Inkjet, Screen Printing |
Key Features

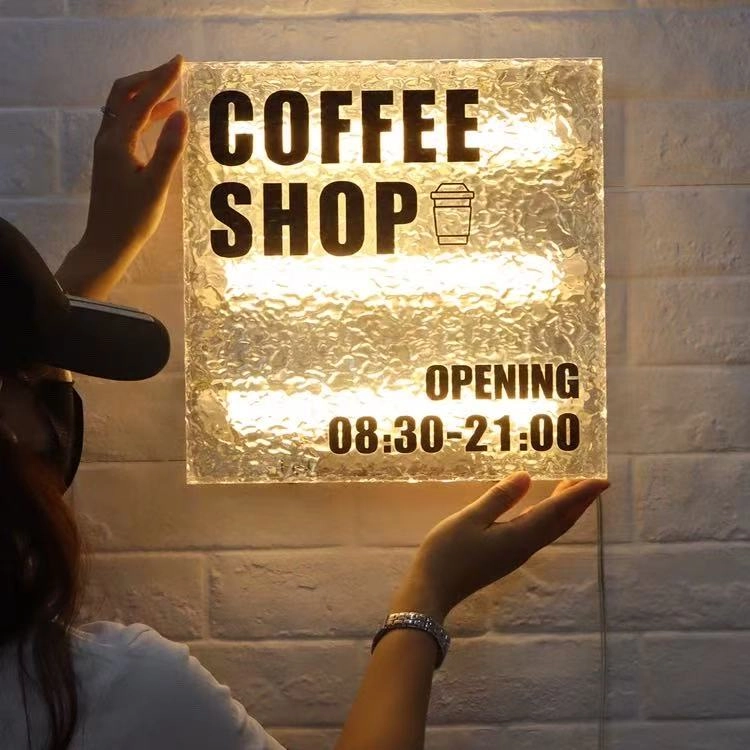

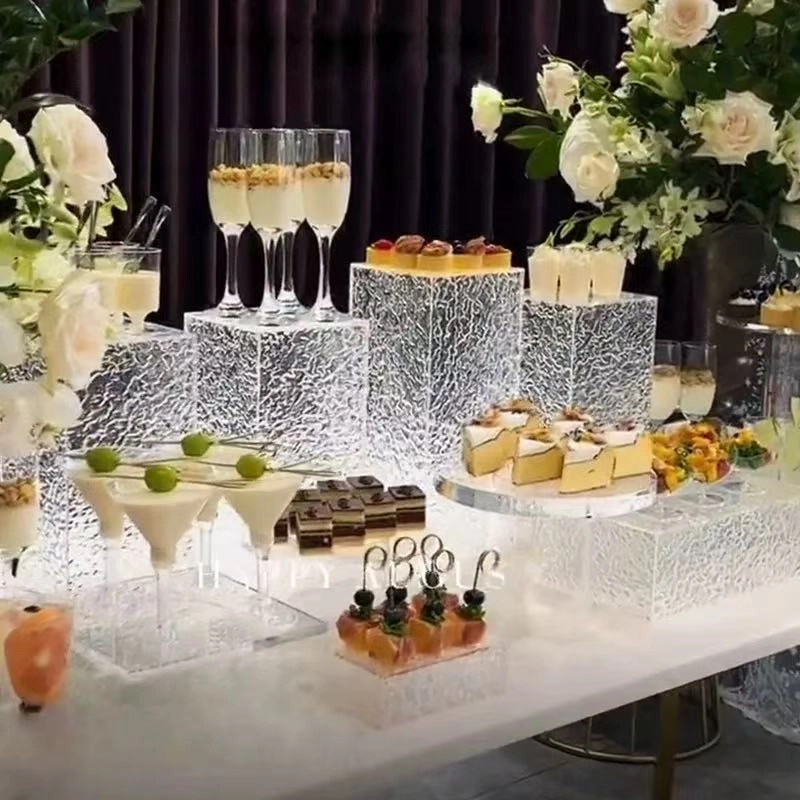

Applications
Cooperation with CHINAPLAS
Core Advantages

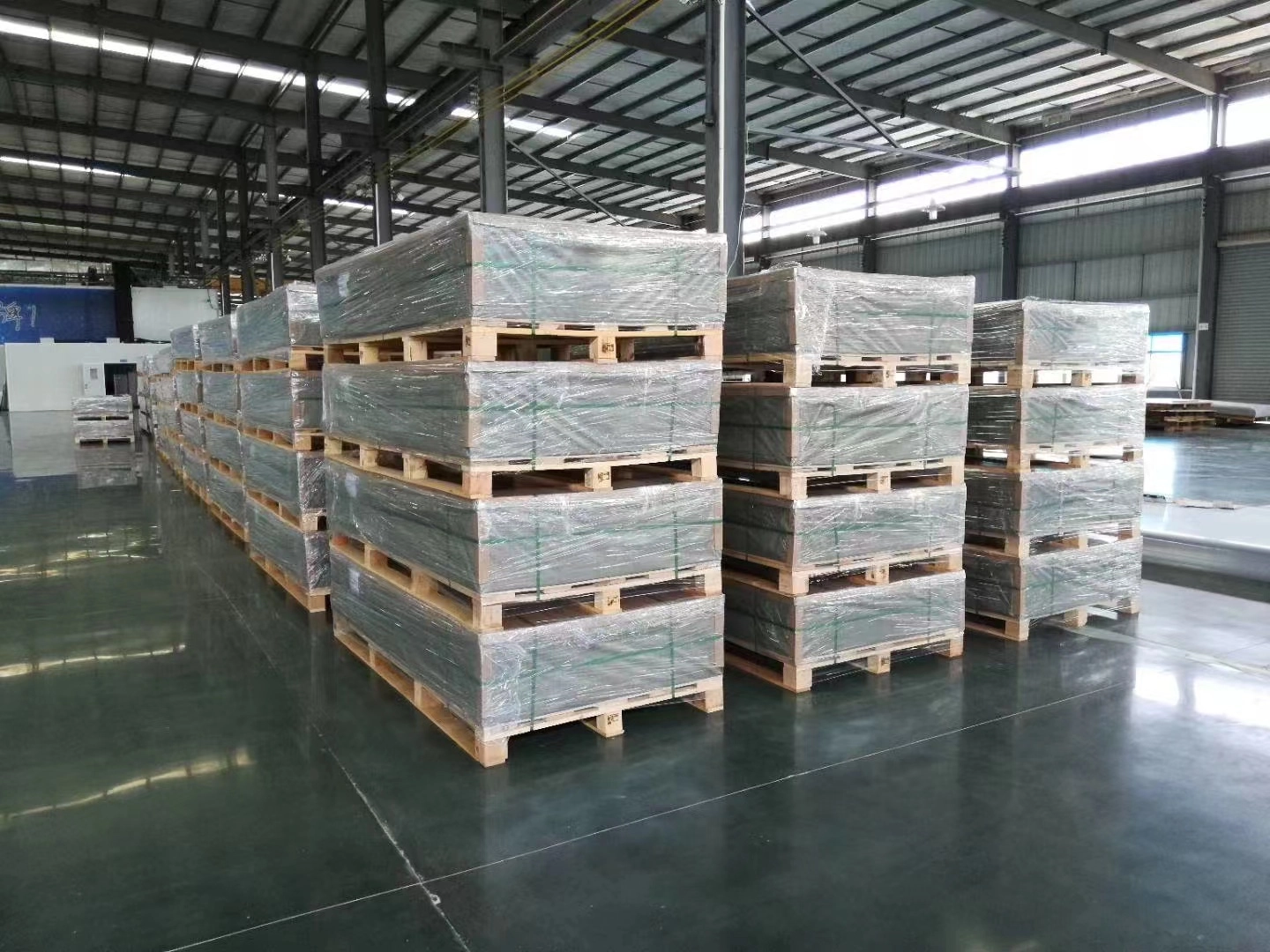

Transportation scheme
• Bulk: shockproof wooden box (recyclable material)
• International: 15–25 days by sea (DDP service available)
Frequently Asked Questions
Still have questions?
Textured Acrylic Sheet
What is the minimum order quantity?
Standard texture from 10 square meters, customized texture from 30 square meters.
Can we do curved bending?
Support hot bending processing, the minimum bending radius = board thickness × 150.
What thickness is recommended for outdoor use?
Recommended ≥5mm (need to cooperate with UV treatment).
Cleaning precautions?
Wire ball is prohibited, neutral cleaner + soft cloth is recommended.
Will the texture affect the cutting accuracy?
No, we use CNC compensation technology to ensure ±0.5mm accuracy.
Are you looking for an initial consultation, or do you have a specific project?
If you are interested our products and services, please leave us messages here to know more details. We will reply as soon as possible.
Rest assured that your privacy is important to us, and all information provided will be handled with the utmost confidentiality.

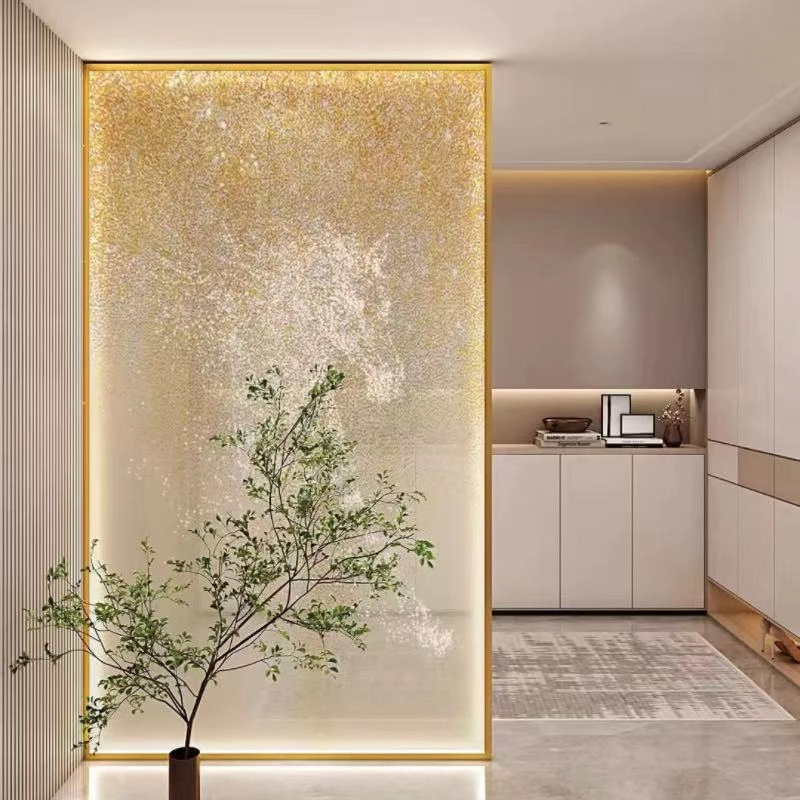

Glitter Acrylic Sheet – Sparkle PMMA Panel for Crafts, Furniture & Interior Design

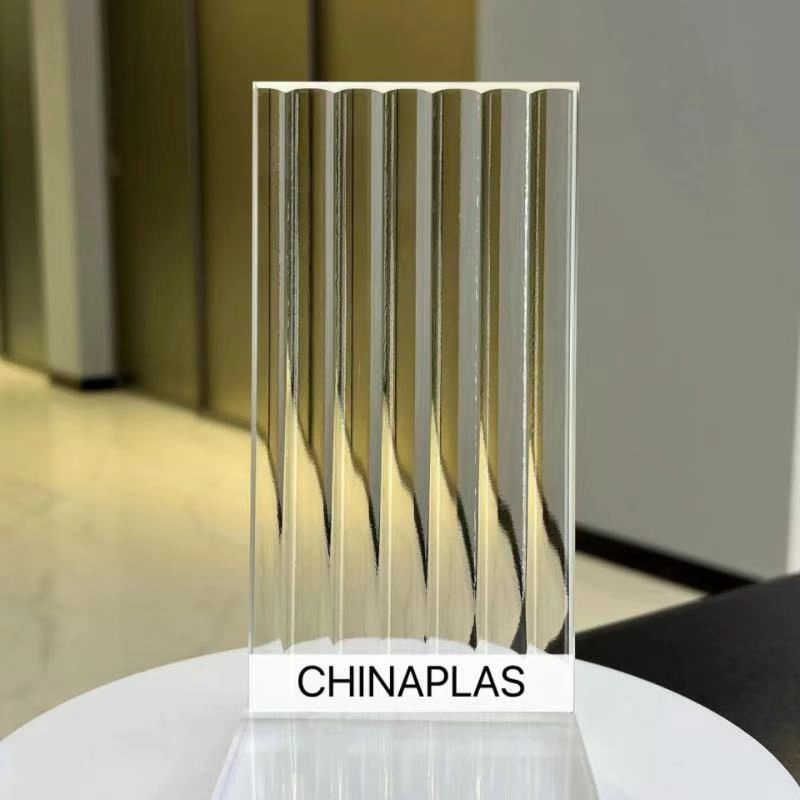

Clear Linear Textured Acrylic Sheet
3mm 5mm 6mm Extruded Wave PMMA Transparent Texture Acrylic Sheet Striped Reed Acrylic Board.

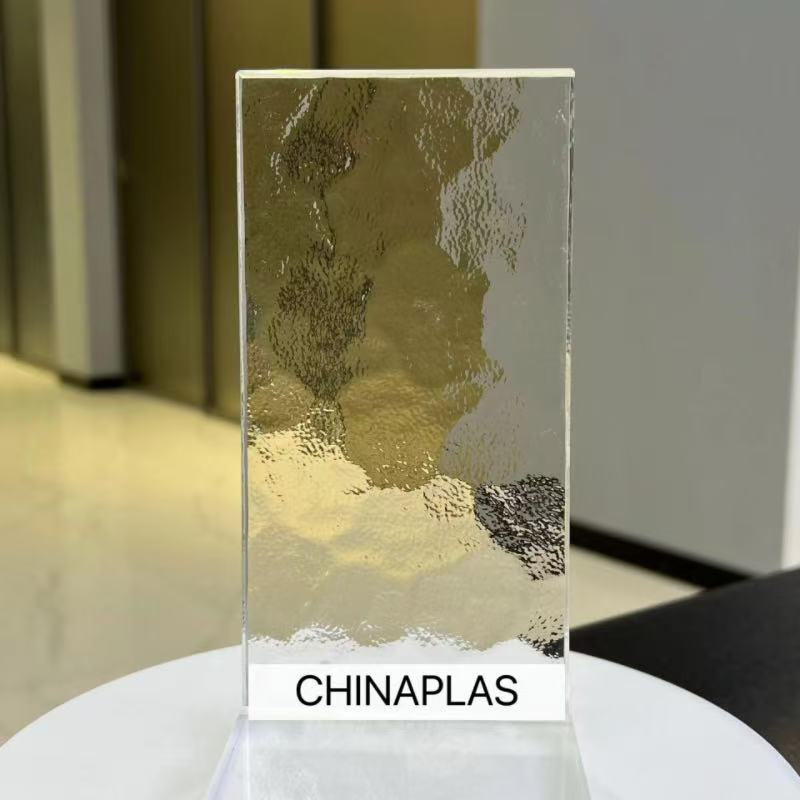

Decorative Textured Acrylic Panels – Custom Patterns for Visual Impact

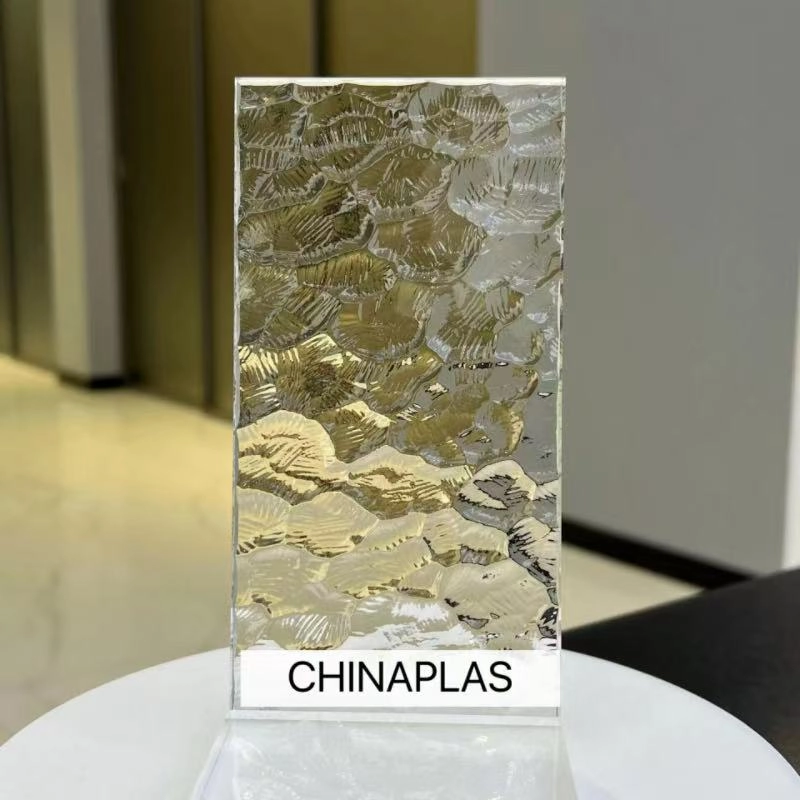

We specialize in the production of high-quality textured acrylic sheets with a special embossing process that creates a three-dimensional ripple/geometric texture on the surface. The products combine the lightness and safety of acrylic with the unique light refraction effect, making them an ideal alternative to traditional glass. Transparent, frosted and colored options are available to meet different design needs.
